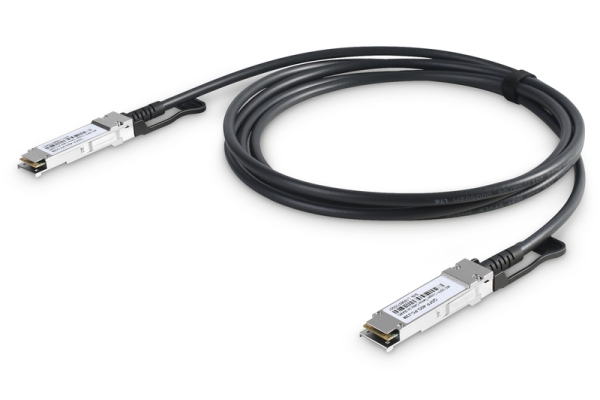

DIGITUS QSFP+ 40G 10 m AOC cable

Popis produktu:

QSFP+ 40G 10m AOC cable Allnet,CISCO,Dell,D-Link,Edimax,Etherwan,Fortinet,

High bandwidth without delays or signal loss


QSFP+ 40G 10 m AOC cable
2.125-41.2 Gbps supported data rate
Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL

Description
Active DIGITUS® 40G QSFP+ AOC cables are a high-performance, energy-saving, short-range connectivity solution that supports InfiniBand QDR/DDR/SDR,12.5G/10G/8G/8G/4G/4G/2G fibre channels, PCIe and SAS. They are compliant with the QSFP MSA and IEEE P802.3ba. Four full-duplex channels are used, with each channel capable of transferring data at rates of up to 11.3 Gbps, thus ensuring an aggregated rate of 45.2 Gbps. Active DIGITUS® 40G QSFP+ AOC cables provide increased port density and cost savings in the overall system.

Technical details
10 m maximum distance
2.125-41.2 Gbps supported data rate
Supported applications: 12.5G fibre channel, 10G fibre channel, 8G fibre channel, 4G fibre channel and 2G fibre channel
Compatible brands: Allnet, CISCO, 3COM, D-LINK, Dell, Edimax, Etherwan, ENTERASYS, EXTREME, FINISAR, FORCE 10, Fortinet, HUAWEI, IBM, JUNIPER, LINKSYS, NETGEAR, NORTEL, RIVERSTONE, ZTE, ZYXEL
DDM/DOM support
Temperature range: 0 to +70 °C
Connectors: QSFP
Power: +3.3 V supply voltage
Power consumption: <1.5 W
850 nm wavelength multimode fibre
Attributes
Length: 10 m
DDM Support: no
Connection: QSFP+
Ethernet speed: 40 Gigabit

Package content
QSFP+ 40G 10 m AOC cable
Quick start guide
