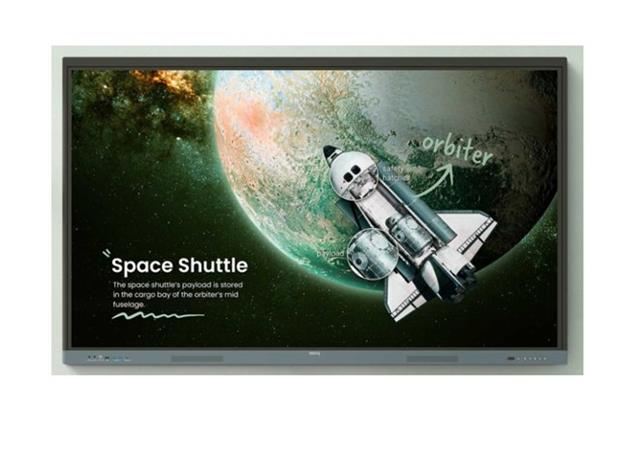

BenQ LCD RE8605A 86" VA Touch/3840×2160/5500:1/8ms/450 nits/HDMI/USB/SPDIF/RS-232/RJ-45/Repro

Popis produktu:

BenQ LCD RE8605A 86" Touch 8/128GB Android 16



Panel
Screen size 86''
Light source Direct LED
Panel type VA
Orientation Landscape
Operation hours 18 hours / 7 days
Active area 1895.0 × 1096.0 mm
Aspect ratio 16:9
Contrast ratio (typical) 5500:1
Dynamic contrast ratio 50,000:1
Resolution UHD 3840 × 2160 pixels
Response time 8 ms
Pixel pitch 0.49 × 0.49 mm
Frame rate 60 Hz
Viewing angle 178°
Panel Surface AG, Haze 25%
Color gamut 72% NTSC
Color depth 10-bit
Light life (typical) 50,000 hrs
Brightness without glass (typical) 450 nits

Glass
Thickness 3.2 mm
Germ-resistant technology N/A
Anti-glare coating Yes
Hardness 9H tempered
Glass Surface Haze 3% ~ 8%

Touch screen
Touch technology Precision IR
Touch points "Up to 50
(Android 50 ; Windows 50)"
Touch resolution 32767 × 32767
Touch response time < 5 ms
Accuracy ±2.0 mm (middle 90% touch area)
OS Supported Windows 7/8/10/11 | Mac OS X 11 or above | Chrome OS 101 or above
Touch pen requirement ? 3 mm
OS for Touch Driver Free Windows 7/8/10/11 | Mac OS X 11 or above | Chrome OS 101 or above


Platform System
SoC RK 3576
CPU A72*4+A53*4
GPU G52 MC3
NPU 6 TOPS
OS Android16 (EDLA)
Memory | Storage 8 GB/ 128 GB


Connectivity
VGA (in | out) N/A
HDMI (in | out) 3 × HDMI 2.0 | 1 × HDMI 2.0
DisplayPort (in | out) N/A
Audio (L/R, RCA) (in | out) N/A
Micro SD reader N/A
Slot-in PC (OPS) 1
SPDIF (in | out) 0 | 1 (optical)
Power (AC) (in | out | switch) 1 | No | 1
Ethernet LAN 10 / 100 / 1000 Mbps (Android), 10 / 100 Mbps (OPS) × 1
RS-232 ( in | out) 1 | 0
3.5 mm Line in (1) N/A
3.5 mm Line in (2) Mic-in x 1
3.5 mm Line out Earphone x 1
USB-A 1 × 2.0 + 3 × 3.0
USB-A (spec name) 1 × USB 2.0 + 3 × USB 3.2 Gen 1 × 1 (1 for optional Wifi dongle)
USB-B (for touch) 2 x 2.0
USB-B (spec name) 2 x USB 2.0
USB-C Front : 1 x USB 3.0 data transmission, video, audio, touch, PD65W)
USB-C (spec name) 1 × USB 3.2 Gen 1 × 1 (PD  65 W)
USB-C out N/A

Built-in peripherals
Speaker 2 x 25W

Power
Power AC 100-240V 50/60Hz
Switch 1
Voltage AC 100-240V 50/60Hz
Wake up LAN/HDMI
Standby power consumption <0.5 W


Physical
Dimensions (W x H x D) 1961.8 × 1179.7 × 87.7mm (77.2 × 46.4 × 3.5 inch)
Bezel width (T I B I L I R) TBD
Weight (product I shipping) 63.4 kg | 80.2 kg (139.8 lbs | 176.8 lbs)
Mount (screws) VESA 800 × 600 mm ( 4 × M8 × 25L)
VESA Hole (for Media Player) N/A
Back Cover Metal
Back Cover Color Black (no logo)
Handles
Pen Tray N/A
Shipping dimensions (W x H x D) 2095 ×  1265 × 185 mm (82.5 × 49.8 × 7.3 inch)

Environment
Storage temperature -10°C ~ 60°C | 14°F ~ 140°F
Operating temperature 0°C ~ 40°C | 32°F ~ 104°F
Storage humidity 10% ~ 80% RH non-condensing
Operating humidity 20% ~ 80% RH non-condensing

Software
Flicker free Yes
Low Blue Light Yes
Device management DMS
Quick access tool Floating tool
WPS (office viewer APP) N/A
Content management N/A
Color Calibration SW N/A
Wireless screen sharing Instashare 2
Broadcast system X-Sign Broadcast
Account management AMS
User interface (4K) Yes
Whiteboarding EZWrite 6.0

Accessories:
Stylus 2
Wall mount 1
Quick Start Guide in box 1
User’s Manual (electronic file) 1
Remote control 1
Carton BenQ printing
Cables 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft)
